S series Business Two-way Radio

Hytera S1 Pro Business Two-way Radio

Hytera S1 Pro/S1 Pro LF is an exquisite business-ready digital radio for luxury hotel, golf course, club, and more high-end businesses. Sleek and light, the radio strikes the perfect balance between elegance and performance, ready for you to instantly connect your team at the push of a button. Getting the best of two worlds—digital and analog, the Hytera S1 Pro/S1 Pro LF levels up your communication experience with a basket of innovative features, including noise cancellation, private call, whisper mode, and voice notification. It gives your business the competitive edge at all time.

Get a Quote

Highlights of Hytera S1 Pro

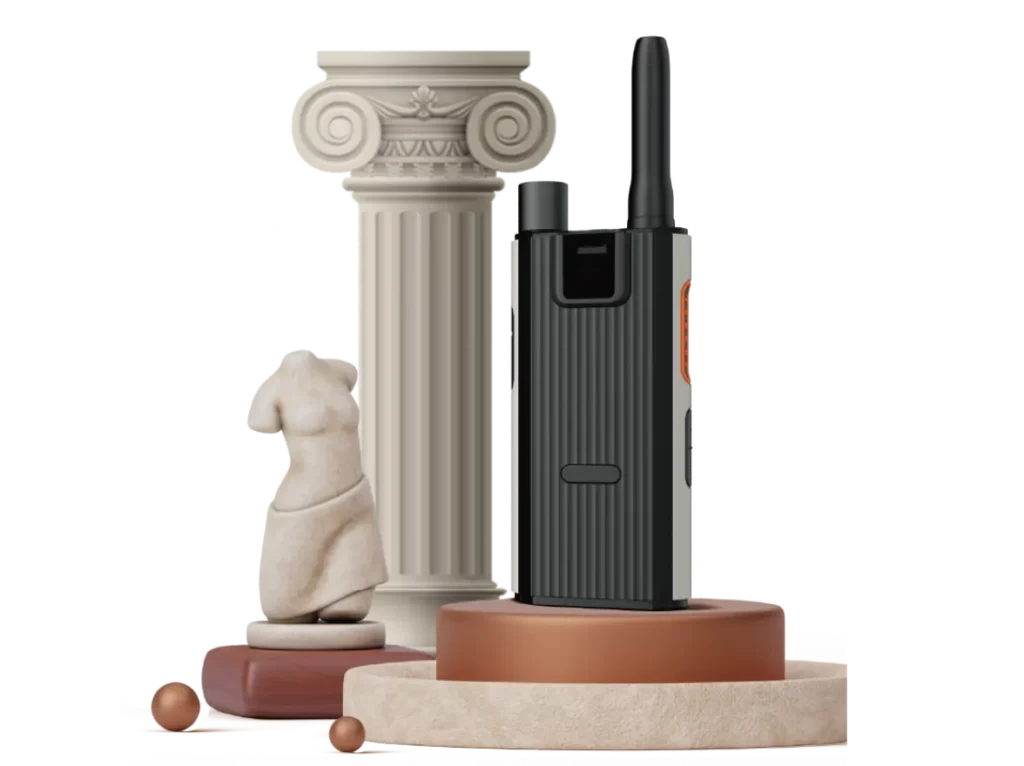

Classical Doric Style

Hytera draws inspiration from the design of the ancient Greek Doric order, and combines the characteristics of elegance, symmetry and scale to inject a unique artistic style into the Hytera S1 Pro. The HD OLED display shows you battery level, frequency, status, channel, and more. Plus, you can create your own channel and radio names that are easy to remember and distinguish.

Hytera S1 Pro business walkie talkie
Hytera S1 Pro-highlight-2

Reliable Communication

As a digital radio, Hytera S1 Pro is compatible with the existing radios and systems. Lower power consumption, wider communication range, and more accurate data transmission. The Hytera S1 Pro also features AI-based Noise Cancellation. It filters out up to 30 dB of noise. Your focus is protected. Your productivity improved.

Boost Your Productivity

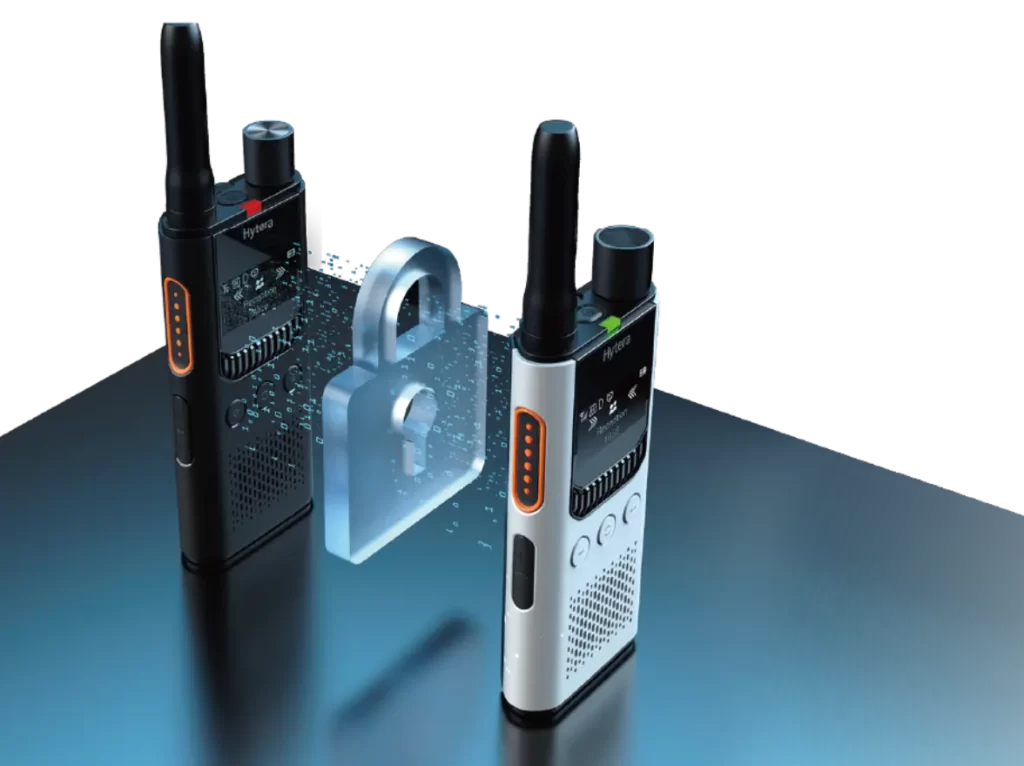

Only those with the same password can join the group call. Protect the conversation against interference from neighboring groups. Whisper on a call and still be heard clearly on the other end. Protect your privacy, without disturbing the peace of customers around you.

Hytera S1 Pro business walkie talkie
Hytera S1 Pro business walkie talkie

Outlast Your Shift

The Hytera S1 Pro radio is designed to outlast your shifts with a battery life of up to 16 hours (3W), allowing you to focus on your work without worrying about battery life. It features USB Type-C fast charging for quick refueling, ensuring you stay powered up and ready. Additionally, the optional 8-pocket charger lets you charge batteries individually or attached to the radios in batches, simplifying the charging process and eliminating cable clutter. With these features, the Hytera S1 Pro ensures you remain connected and efficient throughout your workday.

Easy to Management

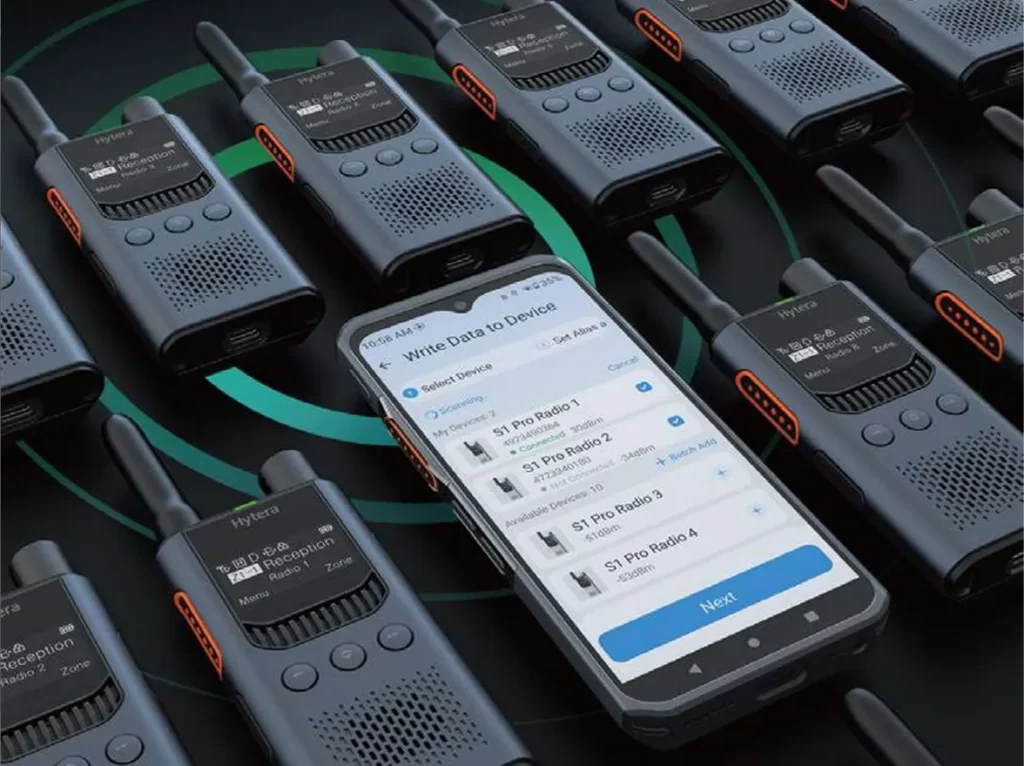

You can clone configuration data from one Hytera S1 Pro to many. All done in a flash. Additionally, you can manage your S1 Pro radio via smartphone, enabling programming, batch configuration, and frequency information backup at your fingertips. These user-friendly features streamline communication and enhance operational efficiency, making the Hytera S1 Pro a practical choice for any team.

Hytera S1 Pro business walkie talkie

Specifications of Hytera S1 Pro

产品规格表
General
Receiver
Transmitter
Environment
Frequency Range400-470 MHz (Main Unit) /446 MHz
Channel Capacity256
Zone Capacity6 (Digital+Analog)
Channel Spacing12.5kHz/20kHz/25kHz
Operating Voltage3.8V（Rated）
Battery2200mAh Li-Polymer
Battery Life(5/5/90 Duty Cycle, TX Power) Digital: 16 hrs (3W)/17 hrs (2W)/18 hrs (1W)/19 hrs (0.5W)
Frequency Stability±0.5ppm
Antenna Impedance50Ω
Dimensions (H×W×D)108*53*20mm (Without antenna)
Weight145g (With belt clip); 135g (Without belt clip)
Display1.3 inch OLED
BTBLE (only data) 5.0
Sensitivity (Analog)0.18μV (12dB SINAD)
Sensitivity (Digital)0.18μV
Adjacent Channel SelectivityETSI: 60dB@12.5kHz / 70dB@20/25kHz
IntermodulationETSI: 65dB@12.5/20/25kHz
Spurious Response RejectionETSI: 70dB@12.5/20/25kHz
BlockingETSI：84dB
Hum&Noise40dB@12.5kHz；43dB@20kHz；45dB@25kHz
Rated Audio Power Output0.5W
Rated Audio Distortion≤5%
Audio Response+1~-3 dB
Conducted Spurious Emission<-57 dBm
RF Power Output400-470MHz: 1W/2W/3W (low/medium/high)
FM Modulation11K0F3E@12.5kHz
14K0F3E@20kHz
16K0F3E@25kHz
Conducted/Radiated Emission-36dBm＜1GHz;-30dBm＞1GHz
Modulation Limiting±2.5kHz@12.5kHz
±4.0kHz@20kHz
±5.0kHz@25kHz
FM Hum&Noise40dB@12.5kHz
43dB@20kHz
45dB@25kHz
Adjacent Channel Power60dB@12.5kHz;70dB@20/25kHz
Audio Distortion≤3%
Operating Temperature-10℃ ~ +55℃
Storage Temperature-30℃ ~ +70℃
ESD±4kV (Contact) ±8kV (Air)
General▼
Frequency Range400-470 MHz (Main Unit) /446 MHz
Channel Capacity256
Zone Capacity6 (Digital+Analog)
Channel Spacing12.5kHz/20kHz/25kHz
Operating Voltage3.8V（Rated）
Battery2200mAh Li-Polymer
Battery Life(5/5/90 Duty Cycle, TX Power) Digital: 16 hrs (3W)/17 hrs (2W)/18 hrs (1W)/19 hrs (0.5W)
Frequency Stability±0.5ppm
Antenna Impedance50Ω
Dimensions (H×W×D)108*53*20mm (Without antenna)
Weight145g (With belt clip); 135g (Without belt clip)
Display1.3 inch OLED
BTBLE (only data) 5.0
Receiver▼
Sensitivity (Analog)0.18μV (12dB SINAD)
Sensitivity (Digital)0.18μV
Adjacent Channel SelectivityETSI: 60dB@12.5kHz / 70dB@20/25kHz
IntermodulationETSI: 65dB@12.5/20/25kHz
Spurious Response RejectionETSI: 70dB@12.5/20/25kHz
BlockingETSI：84dB
Hum&Noise40dB@12.5kHz；43dB@20kHz；45dB@25kHz
Rated Audio Power Output0.5W
Rated Audio Distortion≤5%
Audio Response+1~-3 dB
Conducted Spurious Emission<-57 dBm
Transmitter▼
RF Power Output400-470MHz: 1W/2W/3W (low/medium/high)
FM Modulation11K0F3E@12.5kHz
14K0F3E@20kHz
16K0F3E@25kHz
Conducted/Radiated Emission-36dBm＜1GHz;-30dBm＞1GHz
Modulation Limiting±2.5kHz@12.5kHz
±4.0kHz@20kHz
±5.0kHz@25kHz
FM Hum&Noise40dB@12.5kHz
43dB@20kHz
45dB@25kHz
Adjacent Channel Power60dB@12.5kHz;70dB@20/25kHz
Audio Distortion≤3%
Environment▼
Operating Temperature-10℃ ~ +55℃
Storage Temperature-30℃ ~ +70℃
ESD±4kV (Contact) ±8kV (Air)

Related Video

Hytera Business Two-way RadioS1 Pro Product Video

S1 Pro Quickstart Guide Video

Standard Accessories of S1 Pro

Hytera bc3 list1

BC3

Belt clip

Hytera ro3 list

RO3

Nylon strap

Hytera p2200 list1

P2200

Li-ion PolymerBattery 2200mAh

Optional Accessories of S1 Pro

Hytera ps2022

PS2022

Power Adapter (GB)

Hytera pc161 list

PC161

Data Cable (usB to Type-C)
